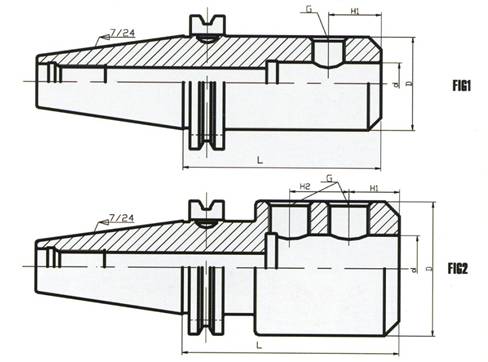

订购号 | FIG | L | Ød | ØD | H1 | H2 | G |
CAT40-SLA08-2.50" | 1 | 2.5" | 8 | 28 | 18 | - | M8×1.0 |
CAT40-SLA10-2.50" | 1 | 2.5" | 10 | 35 | 20 | M10×1.0 | |
CAT40-SLA12-2.62" | 1 | 2.62" | 12 | 42 | 22.5 | M12×1.5 | |
CAT40-SLA16-2.75" | 1 | 2.75" | 16 | 48 | 24 | M14×1.5 | |
CAT40-SLA20-3.50" | 1 | 3.5" | 20 | 48 | 25 | M16×1.5 | |
CAT40-SLA25-4.00" | 2 | 4" | 25 | 62 | 24 | 25 | M18×2.0 |
CAT40-SLA32-4.00" | 2 | 4" | 32 | 63 | 24 | 28 | M20×2.0 |
|
|
|
|
|
|
|
|
CAT50-SLA08-2.50" | 1 | 2.5" | 8 | 28 | 18 | - | M8×1.0 |
CAT50-SLA10-2.50" | 1 | 2.5" | 10 | 35 | 20 | M10×1.0 | |
CAT50-SLA12-2.62" | 1 | 2.62" | 12 | 42 | 22.5 | M12×1.5 | |
CAT50-SLA16-2.75" | 1 | 2.75" | 16 | 48 | 24 | M14×1.5 | |
CAT50-SLA20-3.50" | 1 | 3.5" | 20 | 52 | 25 | M16×1.5 | |
CAT50-SLA25-4.00" | 2 | 4" | 25 | 65 | 24 | 25 | M18×2.0 |
CAT50-SLA32-4.00" | 2 | 4" | 32 | 72 | 24 | 28 | M20×2.0 |
CAT50-SLA40-4.70" | 2 | 4.7" | 40 | 90 | 30 | 32 | M20×2.0 |
