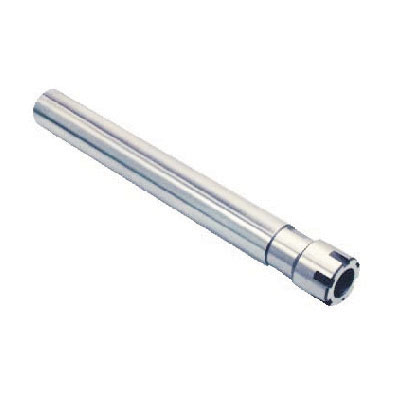

█ 适用于直柄铣刀，钻头，铰刀的延长加工，扳手需另够，也可制作下表以外的尺寸，请商谈。
█ 当选用L＞150的产品时，不得用于横向铣削加工，否则可能产生振刀,M型使用小径ER螺帽,另有黑金刚刀杆，请商谈。
█ 下表所列型号有削平柄可供CNC数控车床使用，如需订购CNC车床延长杆请注明，型号为 例如）SL32-ER32-100。
|
柄径 |
型号 |
D1 |
L |
D2 |
适用筒夹 |
|
C10 |
ER11A-100,150 |
10 |
100,150 |
19 |
ER11 |
|
C12 |
ER11A-100,150 |
12 |
100,150 |
19 |
ER11 |
|
C16 |
ER11A-100,150 |
16 |
100,150 |
19 |
ER11 |
|
ER16A-100,150 |
16 |
100,150 |
20 |
ER16 |
|
|
C20 |
ER16A-100,150,200 |
20 |
100,150,200 |
20 |
ER16 |
|
ER20A-100,150,200 |
20 |
100,150,200 |
25 |
ER20 |
|
|
C10 |
ER08M-100,150 |
10 |
100,150 |
12 |
ER08 |
|
ER11M-100,150 |
10 |
100,150 |
16 |
ER11 |
|
|
C12 |
ER11M-100,150 |
12 |
100,150 |
16 |
ER11 |
|
C16 |
ER11M-100,150 |
16 |
100,150 |
16 |
ER11 |
|
ER16M-100,150 |
16 |
100,150 |
22 |
ER16 |
|
|
C20 |
ER16M-100,150,200 |
20 |
100,150,200 |
22 |
ER16 |
|
ER20M-100,150,200 |
20 |
100,150,200 |
28 |
ER20 |
|
|
C20 |
ER25UM-100,150,200 |
20 |
100,150,200 |
42 |
ER25 |
|
C25 |
ER25UM-100,150,200 |
25 |
100,150,200 |
42 |
ER25 |
|
ER32UM-100,150,200 |
25 |
100,150,200 |
50 |
ER32 |
|
|
C32 |
ER32UM-100,150,200 |
32 |
100,150,200 |
50 |
ER32 |
|
ER40UM-100,150,200 |
32 |
100,150,200 |
63 |
ER40 |
|
|
C40 |
ER32UM-100,150,200 |
40 |
100,150,200 |
50 |
ER32 |
|
ER40UM-100,150,200 |
40 |
100,150,200 |
63 |
ER40 |
