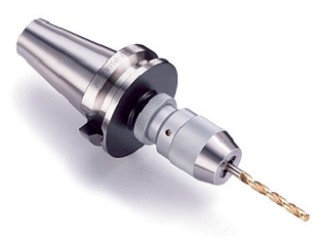

BT50-B钻夹头刀柄
| 规格 | L2 | L | D | D1 | 拉杆 | 重量 Wt （Kg) |
| BT30-J1-45 | 16.669 | 110 | 9.754 | 31.75 | M12 | 0.60 |
| BT30-J2-45 | 22.225 | 115.6 | 14.199 | 31.75 | M12 | 0.70 |
| BT30-J3-45 | 30.956 | 124.4 | 20.599 | 31.75 | M12 | 0.80 |
| BT30-J4-45 | 42.069 | 135.4 | 28.550 | 31.75 | M12 | 0.85 |
| BT30-J5-45 | 47.625 | 141 | 35.890 | 31.75 | M12 | 0.90 |
| BT30-J6-45 | 25.4 | 118.8 | 17.170 | 31.75 | M12 | 0.75 |
| BT30-J33-40 | 25.4 | 113.8 | 15.850 | 31.75 | M12 | 0.75 |
| BT30-J33-45 | 25.4 | 118.8 | 15.850 | 31.75 | M12 | 0.75 |
| BT30-B10-45 | 14.5 | 107.9 | 10.094 | 31.75 | M12 | 0.60 |
| BT30-B12-45 | 18.5 | 111.9 | 12.065 | 31.75 | M12 | 0.60 |
| BT30-B16-45 | 24 | 117.4 | 15.733 | 31.75 | M12 | 0.70 |
| BT30-B18-45 | 32 | 125.4 | 17.780 | 31.75 | M12 | 0.82 |
| BT40-J1-45 | 16.669 | 127.1 | 9.754 | 44.45 | M16 | 1.15 |
| BT40-J2-45 | 22.225 | 132.6 | 14.199 | 44.45 | M16 | 1.25 |
| BT40-J3-45 | 30.956 | 141.4 | 20.599 | 44.45 | M16 | 1.45 |
| BT40-J4-45 | 42.069 | 125.5 | 28.550 | 44.45 | M16 | 1.55 |
| BT40-J5-45 | 47.625 | 158 | 35.890 | 44.45 | M16 | 1.60 |
| BT40-J6-45 | 25.4 | 135.8 | 17.170 | 44.45 | M16 | 1.30 |
| BT40-J33-45 | 25.4 | 135.8 | 15.850 | 44.45 | M16 | 1.30 |
| BT40-B10-45 | 14.5 | 124.9 | 10.094 | 44.45 | M16 | 1.40 |
| BT40-B10-120 | 14.5 | 199.9 | 10.094 | 44.45 | M16 | 1.76 |
| BT40-B12-45 | 18.5 | 128.9 | 12.065 | 44.45 | M16 | 1.34 |
| BT40-B16-32 | 24 | 121.4 | 15.733 | 44.45 | M16 | 1.40 |
| BT40-B16-45 | 24 | 134.4 | 15.733 | 44.45 | M16 | 1.45 |
| BT40-B16-75 | 24 | 164.4 | 15.733 | 44.45 | M16 | 1.55 |
| BT40-B16-90 | 24 | 179.4 | 15.733 | 44.45 | M16 | 1.40 |
| BT40-B18-45 | 32 | 142.4 | 17.780 | 44.45 | M16 | 1.70 |
| BT40-B18-75 | 32 | 172.4 | 17.780 | 44.45 | M16 | 1.76 |
| BT45-B16-90 | 24 | 196.8 | 15.733 | 51.75 | M20 | 2.30 |
| BT45-B16-100 | 24 | 206.8 | 15.733 | 51.75 | M20 | 2.40 |
| BT50-J1-45 | 16.669 | 163.5 | 9.754 | 69.85 | M24 | 3.60 |
| BT50-J2-45 | 22.225 | 169 | 14.199 | 69.85 | M24 | 3.95 |
| BT50-J3-45 | 30.596 | 177.8 | 20.599 | 69.85 | M24 | 3.70 |
| BT50-J4-45 | 42.069 | 188.9 | 28.550 | 69.85 | M24 | 3.75 |
| BT50-J5-45 | 47.625 | 194.4 | 35.890 | 69.85 | M24 | 3.80 |
| BT50-J6-45 | 25.4 | 172.2 | 17.170 | 69.85 | M24 | 4.00 |
| BT50-J33-45 | 25.4 | 172.2 | 15.850 | 69.85 | M24 | 4.00 |
| BT50-B10-45 | 14.5 | 161.3 | 10.094 | 69.85 | M24 | 3.60 |
| BT50-B10-100 | 14.5 | 216.3 | 10.094 | 69.85 | M24 | 3.80 |
| BT50-B12-45 | 18.5 | 165.3 | 12.065 | 69.85 | M24 | 3.60 |
| BT50-B16-45 | 24 | 170.8 | 15.733 | 69.85 | M24 | 3.65 |
| BT50-B16-60 | 24 | 185.8 | 15.733 | 69.85 | M24 | 3.70 |
| BT50-B16-75 | 24 | 200.8 | 15.733 | 69.85 | M24 | 3.74 |
| BT50-B16-90 | 24 | 215.8 | 15.733 | 69.85 | M24 | 3.78 |
| BT50-B18-45 | 32 | 178.8 | 17.780 | 69.85 | M24 | 3.70 |
