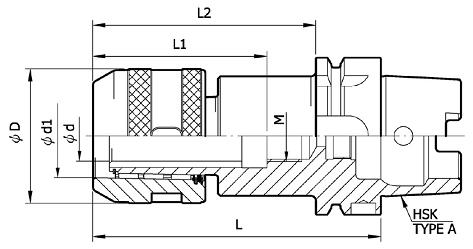

订购号 | Ød1 | ØD | M | L | 刀具夹持 | L2 | 筒夹 | 扳手 |
HSK63A-PFC20-105 | 20 | 52 | M18×1.5 | 105 | 63 | 79 | PFC20 | PHS-ER32 |
HSK63A-PFC32-135 | 32 | 69 | M28×1.5 | 135 | 77 | 109 | PFC32 | PHS-PFC32 |
|
|
|
|
|
|
|
|
|
HSK100A-PFC20-120 | 20 | 52 | M18×1.5 | 120 | 63 | 91 | PFC20 | PHS-ER32 |
HSK100A-PFC32-150 | 32 | 69 | M28×1.5 | 150 | 77 | 121 | PFC32 | PHS-PFC32 |
